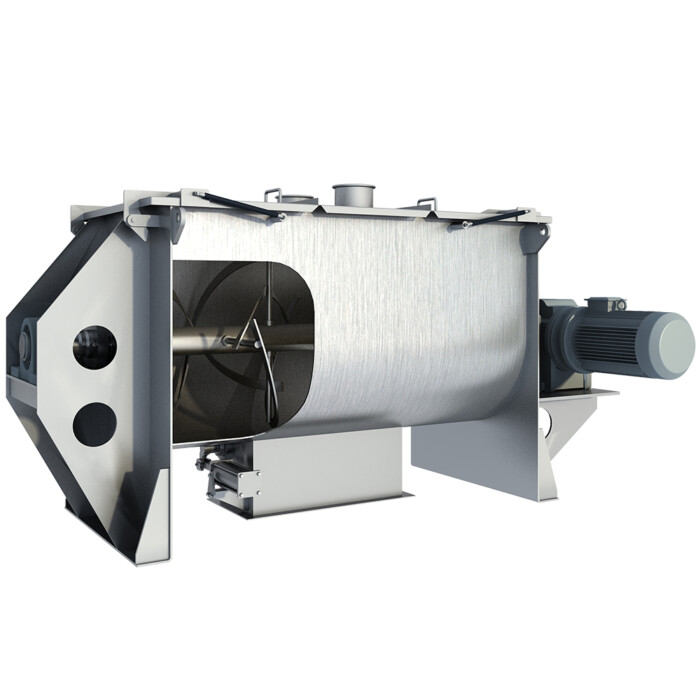

What is a Ribbon Blender?
Ribbon Blender (also named ribbon mixer) is a basic industrial mixing machine. Vortex ribbon blender consists, basically, of a trough-shaped shell (usually 2 to 3 times longer than its wide) with a semicircular bottom, fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws set at approx. 5mm clearance to the semicircular mixer body so that no layer of material remains on the bottom of the ribbon mixer at discharging materials.
How does a Ribbon Blender Work?
The most effective design of Vortex ribbon layout is the double spiral in which the outer ribbon moves the product in one direction and the inner ribbon moves it in the opposite direction. The helical ribbons rotate and move materials both radially and laterally, and thus mixing materials form convection & tumble motion to insure thorough mixing homogeneity in short cycle times (usually 2-10 minutes). Vortex ribbon agitators are designed for loading ratio that will be 40% – 60% of ribbon blender’s nominal capacity.

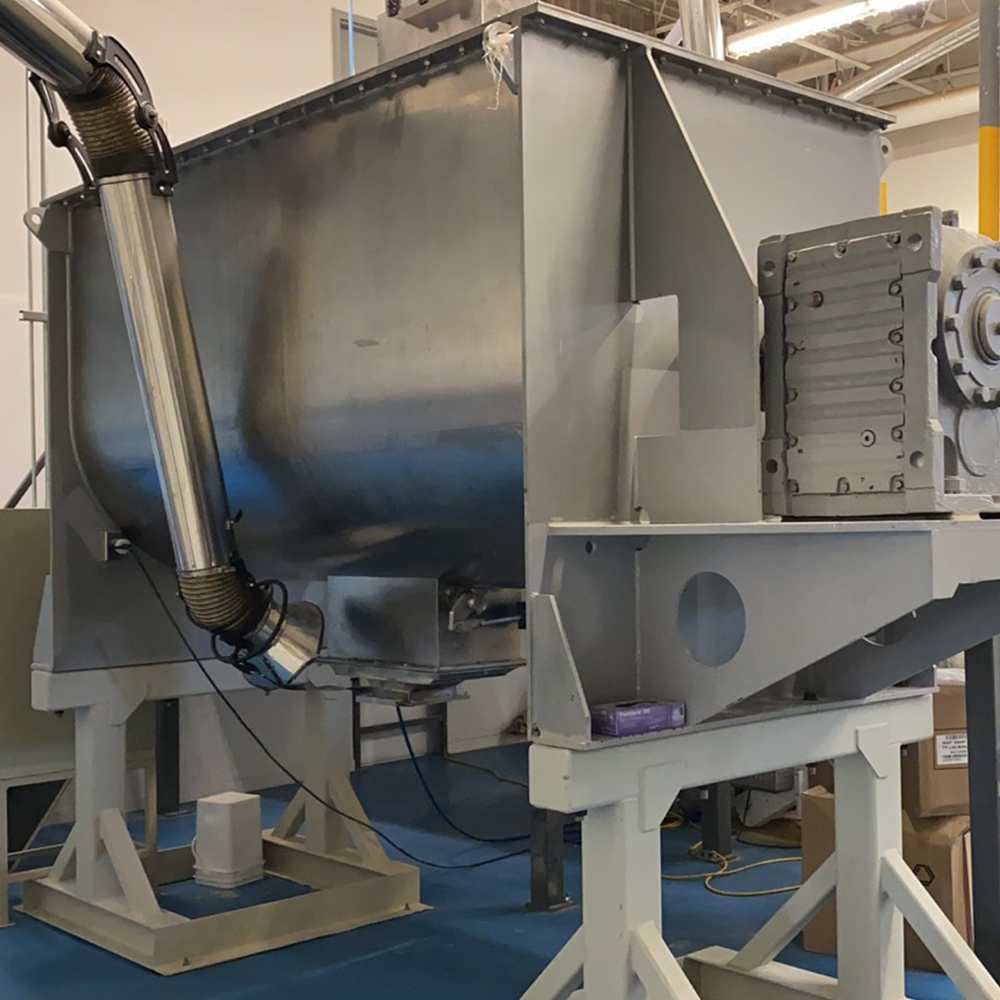

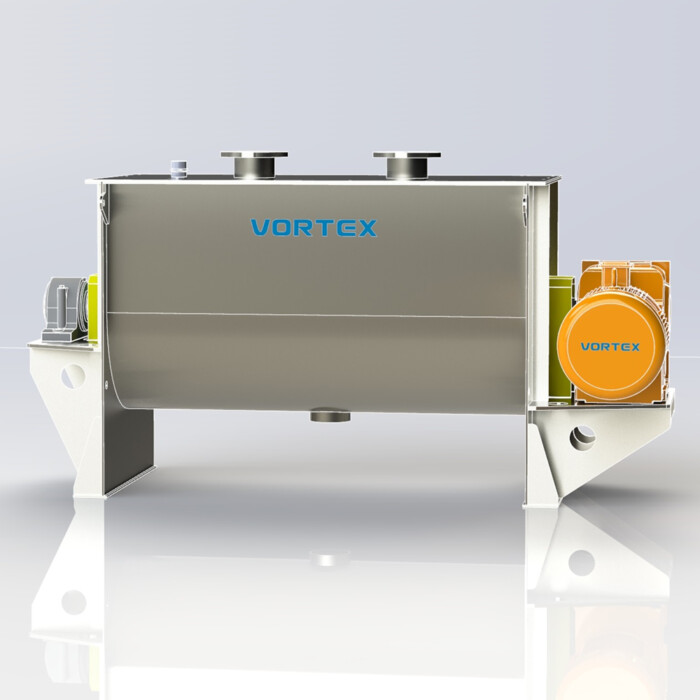

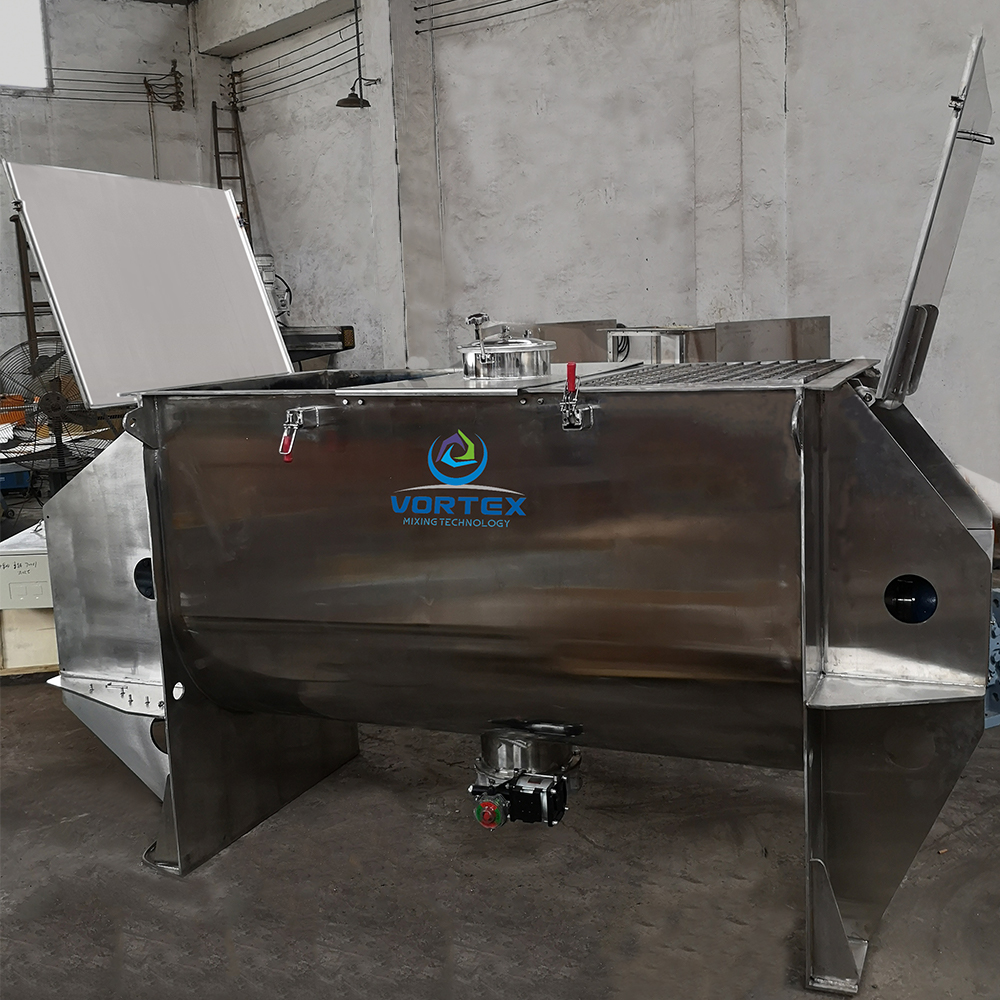

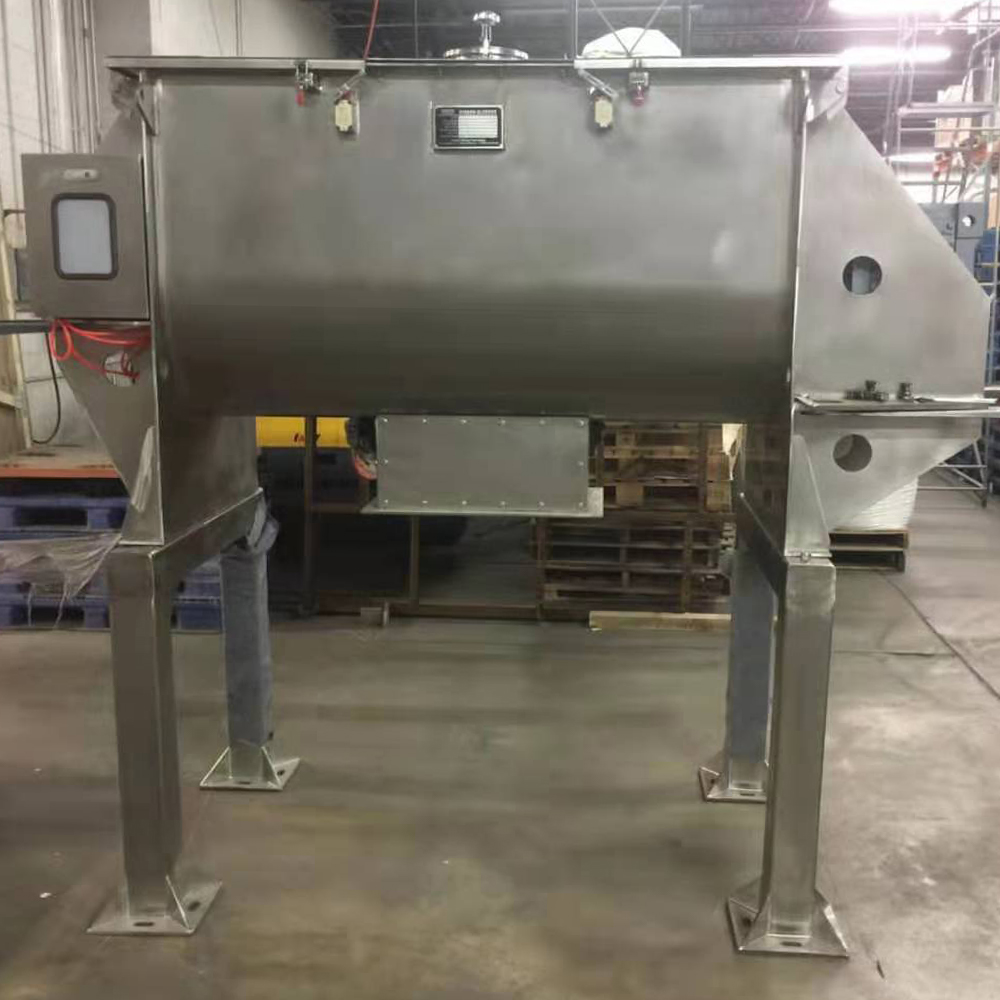

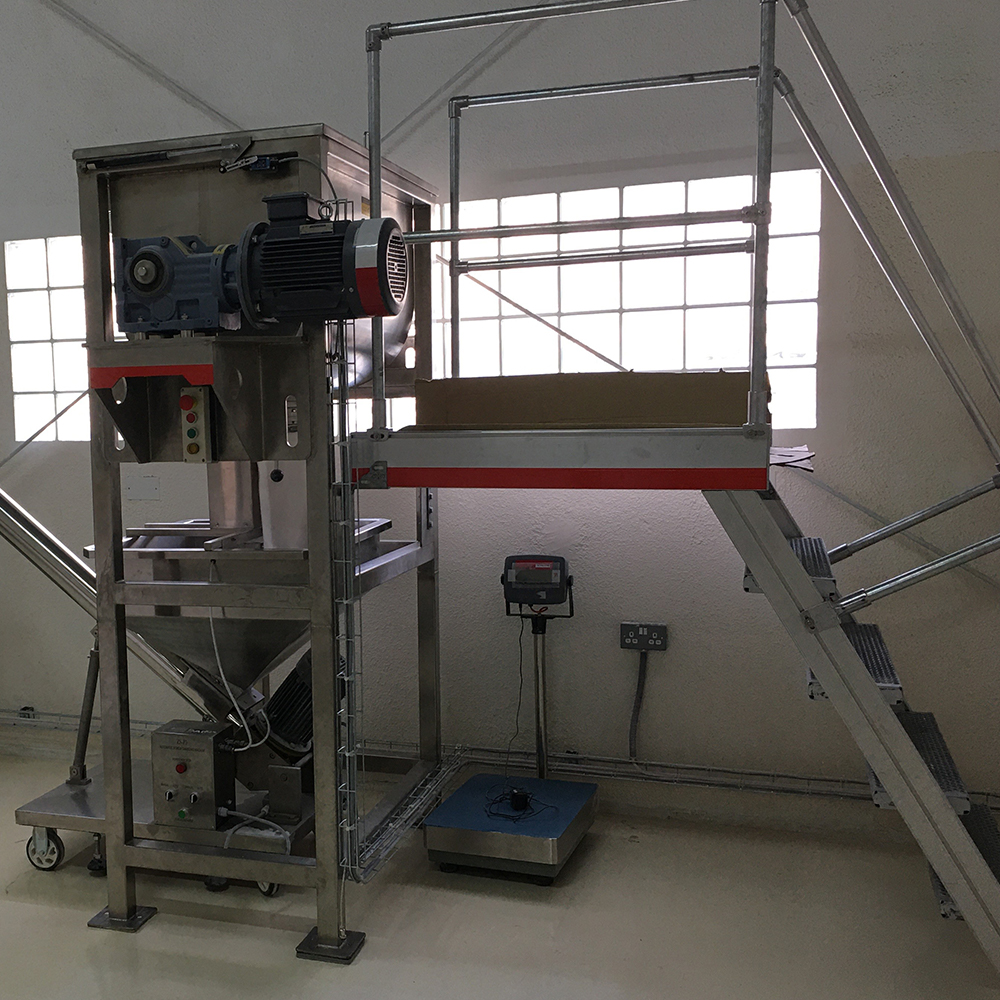

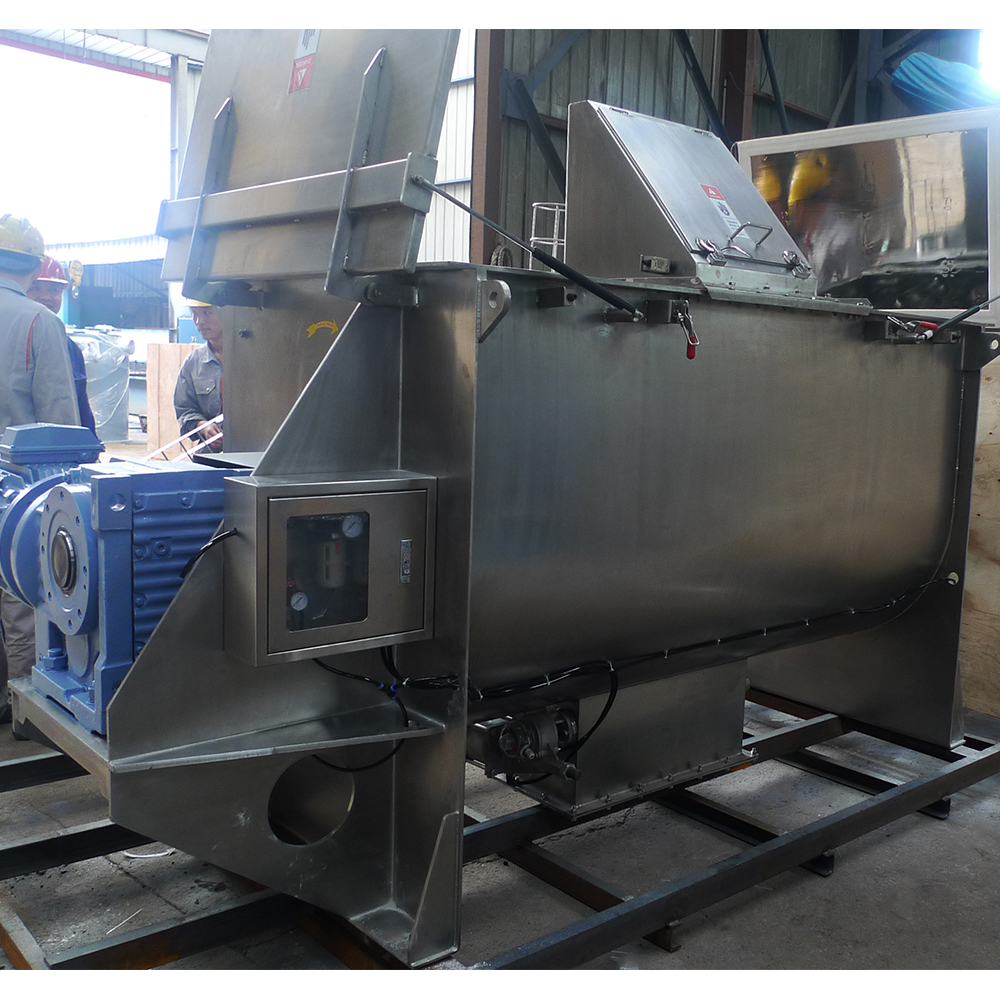

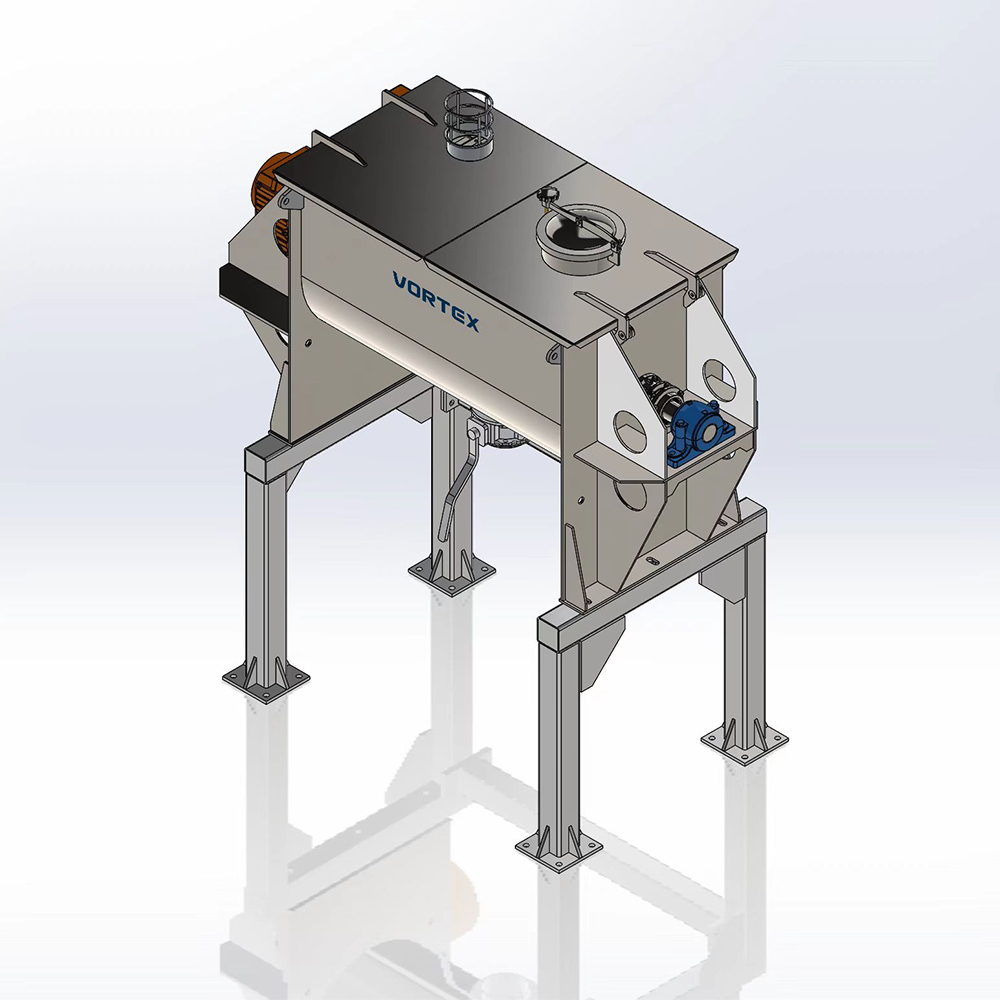

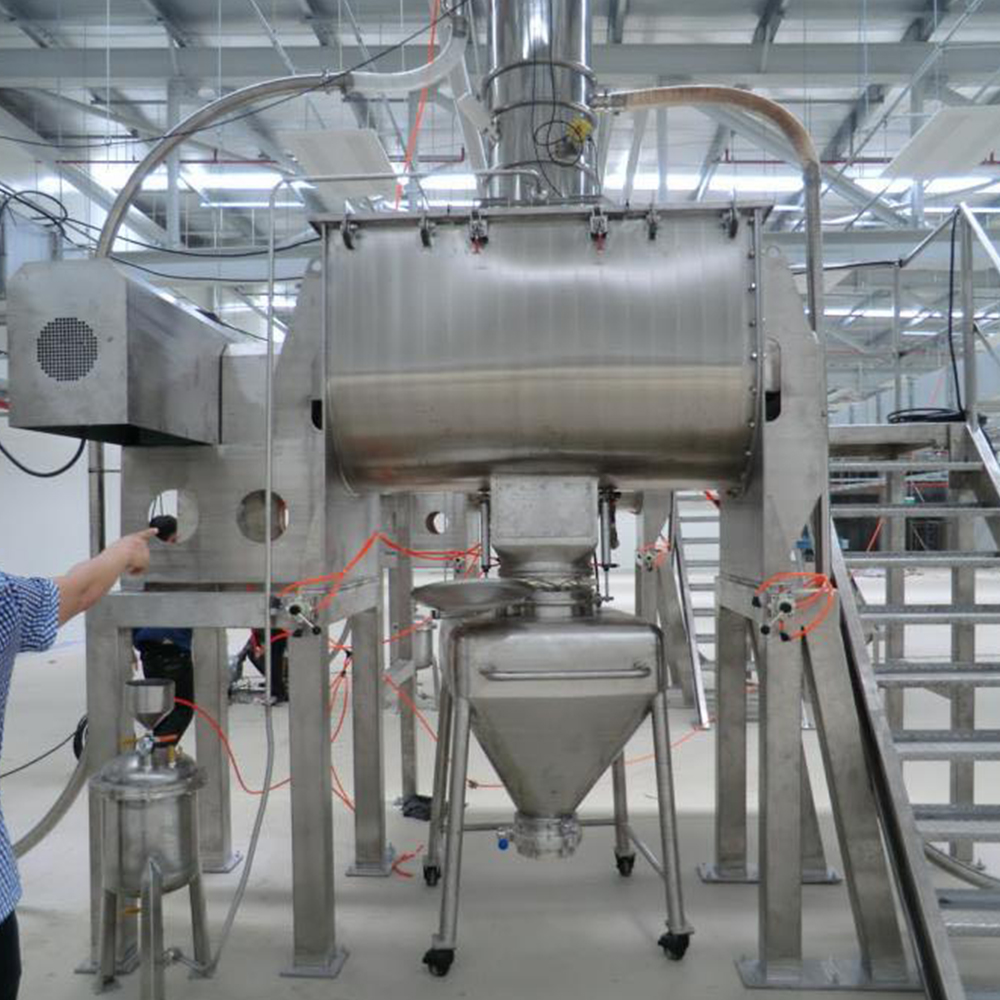

Photo Gallery
| Total Volume | 100L – 30000L |
|---|---|
| Liquid Spray | CIP Clean Nozzle, Liquid Spray Nozzle |

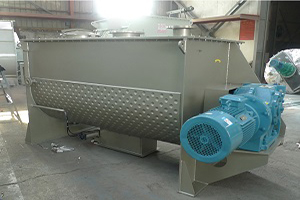

| Jacket | ASME Pressure Vessel Certificate, Cool Jacket, Heat Jacket |
| Discharge Valve | Butterfly Valve, Electric, Flap Valve, Gate Valve, Manual, Pneumatic |
| Anciliary Device | Screw Conveyor, Vacuum Conveyor, Dump Station, Storage Tank, Quantitive Discharge, Circular Vibration Sieve |
| Explosion Proof | Hazardous area zone 20, 21, 22 |
Application
What does a ribbon blender do?
Vortex ribbon blender is a versatile batch type mixer for blending powder & bulk materials.
This blender is broadly used in food, chemical, pharmaceutical, building materials, plastic, and other processing industries, whichever need to blend raw materials homogenously together.
Ribbon blender features economic price, stable performance. Equipped with jacket, vortex ribbon blender can heat, cool or dry materials under vacuum condition; equipped with liquid spray system, it can coat liquid materials on solid granules.
Work Video
Optional Function
VORTEX Ribbon Blenders can be designed for vacuum operation up to -0.01Mpa as well as positive internal pressure.
ASME or PED pressure vessel certificate is available.
Equipped with jacket, vortex ribbon blender can heat, cool or dry materials under vacuum condition;
The heat media could be hot water, thermal oil or steam. Cool media could be cold water;
Heat temperature could be up to 350 Celsius Degree.
Liquid feeding device could equip Fan-shaped nozzle or CIP cleaning nozzle.
Fan-shaped stationary nozzle could inject liquid with 25-120 degree atomized fan shape;
CIP cleaning nozzle could stream liquid in 360 degree to wash each corner of the mixing vessel.
Suit for dust environment Zone 21, Zone 22
- Relay Control
- PLC Control with HMI
Teflon Coating，Tungsten carbide Coating is often chose to protect ribbon blender’s inner surface.
Specifications
| Model | Nominal Volume | Mixing Volume | Speed(RPM) | Motor Power |
|---|---|---|---|---|
| VRB-0.1m³ | 100L | 40L-60L | 76 | 3KW(4HP) |
| VRB-0.3m³ | 300L | 120L-180L | 66 | 4KW(5.5HP) |
| VRB-0.5m³ | 500L | 200L-300L | 66 | 5.5KW(7.5HP) |
| VRB-1m³ | 1000L | 400L-600L | 41 | 11KW(15HP) |
| VRB-1.5m³ | 1500L | 600L-900L | 41 | 15KW(20HP) |
| VRB-2m³ | 2000L | 800L-1200L | 41 | 18.5KW(25HP) |
| VRB-3m³ | 3000L | 1200L-1800L | 33 | 22KW(30HP) |
| VRB-4m³ | 4000L | 1600L-2400L | 33 | 22KW(30HP) |
| VRB-5m³ | 5000L | 2000L-3000L | 26 | 30KW(41HP) |
| VRB-6m³ | 6000L | 2400L-3600L | 26 | 37KW(50HP) |
| VRB-8m³ | 8000L | 3200L-4800L | 26 | 45KW(61HP) |
| VRB-10m³ | 10000L | 4000L-6000L | 20 | 55KW(75HP) |
| VRB-12m³ | 12000L | 4800L-7200L | 20 | 55KW(75HP) |
| VRB-15m³ | 15000L | 6000L-9000L | 17 | 75KW(102HP) |
| VRB-20m³ | 20000L | 8000L-12000L | 17 | 75KW(102HP) |
Advantages
Why choose VORTEX Ribbon Blender?
Custom Design
Custom Drive UnitCustom Design
Vortex ribbon blenders’ drive components is custom equipped to ensure trouble free operation for decades of years.
Sanitary Polish
suit for food industrySanitary Polish
Vortex ribbon blenders are fine polished, the surface is smooth, scratch free.
Easy Cleaning
fully opened coverEasy Cleaning
usually, the opening at top cover is very large to touch into the inner surface for cleaning purpose.
