Working Principle

Double Cone Blenders are most often used for dry blending of free flowing solids. The solids being blended in these units can vary in bulk density and in percentage of the total mixture. Materials being blended are constantly being intermixed as the Double Cone rotates. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of blending.

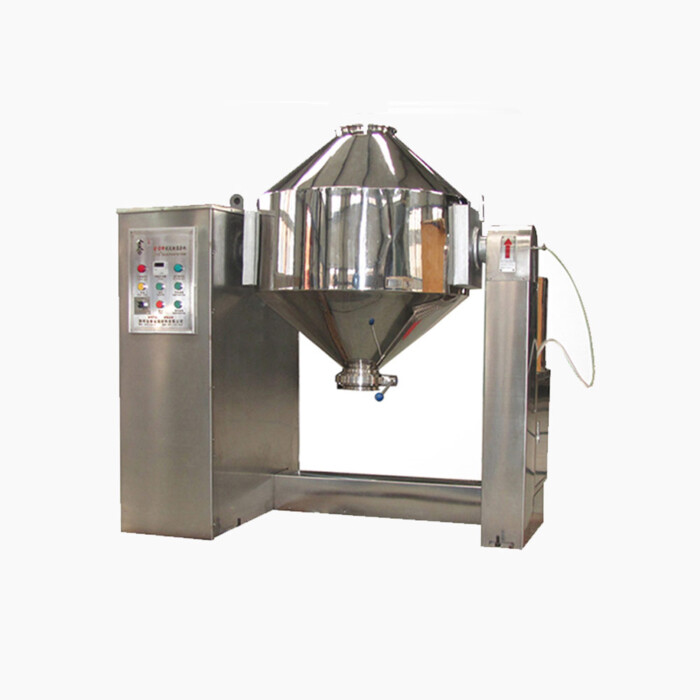

double cone blenderdouble cone blender production line

Photo Gallery

Total Volume

100L – 30000L

Construction Material

Carbon Steel, SUS304 Stainless Steel, SUS316 Stainless Steel

Liquid Spray

CIP Clean Nozzle, Liquid Spray Nozzle

Application

pharmaceuticals, foods, chemicals, fertilizers, plastics, pigments, cosmetics, etc powder mateirals

Salient Features

1. The conical shape at both ends enables uniform mixing and easy discharge.

2. Suitable size of butter fly valve at one end of the cone provided for material discharge & hole with openable cover provided at other end of the cone for material charging & cleaning.

Technical Parameters

Model

Nominal Volume(L)

Working Volume(L)

Barrel Thickness (mm)

Barrel Rotation Speed(r/min)

Blade Rotation Speed(r/min)

Motor Power(kw)

VMS100

100

50

3

15

1.5

VMS300

300

150

3

24

24

1.5

VMS500

500

250

4

24

24

2.2

VMS1000

1000

500

4

10

10

7.5

VMS2000

2000

1050

5

10

10

12

VMS3000

3000

1500

6

8

8

18

VMS5000

5000

2500

6

6

6

25

VMS10000

10000

5000

6

6

6

30

VMS20000

20000

10000

7

4

4

37

VMS28000

28000

14000

7

4

4

45

Inner Structure

double cone blender
